| 件号 - | 软管尺寸 | ID | OD | WP | |||||
| dash | inch | DN | mm | inch | mm | inch | bar | psi | |
| A6S-12-1400 | -8 | 1/2 | 12 | 12.8 | 0.504 | 24.3 | 0.957 | 1400 | 20300 |
| A6S-20-1200 | -12 | 3/4 | 20 | 18.8 | 0.74 | 32.6 | 1.283 | 1200 | 17400 |
| 描述 | 锥度 | WP | 螺纹F | 适用软管 |
| psi | ||||
| 1/4"F-BSPP A 1/8" | 24-60 | 22000 | 1/4"-19GAS | 2S-3-1040 |
| 1/4"F-BSPP B/A 5/32" | 24-60 | 22000 | 1/4"-19GAS | 2S-4-1200，4S-4-1040 |
| 1/4"F-BSPP B/A 5/32" | 24-60 | 22000 | 1/4"-19GAS | 2SH-3-1040 |
| 1/4"F-BSPP C 5/32" | 24-60 | 31900 | 1/4"-19GAS | 4SH-4-2200 |
| 1/4"F-BSPP A 3/16" | 24-60 | 22000 | 1/4"-19GAS | 2S-5-1040 |
| 1/4"F-BSPP A 3/16" | 24-60 | 22000 | 1/4"-19GAS | 2SH-4-1200 |
| 1/4"F-BSPP C 3/16" | 24-60 | 26100 | 1/4"-19GAS | 4SH-5-1800 |
| 1/4"F-BSPP F/E 3/16" | 24-60 | 40600 | 1/4"-19GAS | B6S-5-2500，D6S-5-2800 |
| 1/4"F-BSPP I/H 3/16" | 24-60 | 40600 | 1/4"-19GAS | E6SH-5-3200，B8S-5-4000 |
| 1/4"F-BSPP B/A 1/4" | 24-60 | 22000 | 1/4"-19GAS | 2S-6-1040，4S-6-1380 |
| 1/4"F-BSPP C 1/4" | 24-60 | 24000 | 1/4"-19GAS | 4SH-6-1640 |
| 3/8"F-BSPP A 5/16" | 24-60 | 22000 | 3/8"-19GAS | 2S-8-1040 |
| 3/8"F-BSPP C/B 5/16" | 24-60 | 22000 | 3/8"-19GAS | 4S-8-1380，4SH-8-1500 |
| 1/2"F-BSPP B/A 3/8" | 24-60 | 22000 | 1/2"-14GAS | 2S-10-690，4S-10-1100 |
| 1/2"F-BSPP E/C 3/8" | 24-60 | 28000 | 1/2"-14GAS | 4SH-10-1400，B6S-10-2070 |
| 1/2"F-BSPP A 1/2" | 24-60 | 18000 | 1/2"-14GAS | 2S-12-690 |
| 1/2"F-BSPP G/D/C/B 1/2" | 24-60 | 22000 | 1/2"-14GAS | 4S-12-1040,4SH-12-1300,4SHH-12-1040,A6S-12-1400 |
| 1"F-BSPP G/C/A 3/4" | 60 | 18000 | 1"-11GAS | 4S-20-760,4SH-20-1040，A6S-20-1200 |
| 1+1/4"F-BSPP C1 | 60 | 15000 | 1+1/4"-11GAS | 4SH-25-1040 |
| 描述 | WP | 螺纹F | 适用软管 |
| psi | |||
| 9/16 F-JIC B/A 1/4 | 22000 | 9/16-18 UNF | 2S-6-1040，4S-6-1380 |
| 9/16 F-JICC 1/4 | 24000 | 9/16-18 UNF | 4SH-6-1640 |
| 9/16 F-JIC A 5/16 | 22000 | 9/16-18 UNF | 2S-8-1040 |
| 3/4 F-JIC C/B 5/16 | 22000 | 3/4-16 UNF | 4S-8-1380，4SH-8-1500 |
| 3/4 F-JIC B/A 3/8 | 22000 | 3/4-16 UNF | 2S-10-690，4S-10-1100 |
| 3/4 F-JICC 3/8 | 22000 | 3/4-16 UNF | 4SH-10-1400 |
| 7/8 F-JIC G/D/C/B 1/2 | 22000 | 7/8-14 UNF | 4S-12-1040,4SH-12-1300,4SH-12-1040,A6S-12-1400 |
| 1+5/16 F-JIC G/C/A 3/4 | 24000 | 1+5/16-12 UN | 4S-20-760,4SH-20-1040,A6S-20-1200 |
| 1+5/16 F-JICCI | 15000 | |-t-5/16-12 UN | 4SH-25-1040 |
| 描述 | WP | 螺纹F | 适用软管 |
| psi | |||
| 9/16 F-TYPE MB/A 5/32 | 30000 | 9/16-18 UNF | 2S-4-1200，4S-4-1040 |
| 9/16 F-TYPE ME/C 5/32 | 58000 | 9/16-18 UNF | 4SH-4-2200,B6S-4-2800 |
| 9/16 F-TYPE MA 3/16 | 30000 | 9/16-18 UNF | 2S-5-1040 |
| 9/16 F-TYPE MC 3/16 | 30000 | 9/16-18 UNF | 4SH-5-1800 |
| 9/16 F-TYPE MF/E 3/16 | 45000 | 9/16-18 UNF | B6S-5-2500，D6S-5-2800 |
| 9/16 F-TYPE MI/H 3/16 | 58000 | 9/16-18 UNF | E6SH-5-3200，B8S-5-4000 |
| 9/16 F-TYPE MB/A 1/4 | 24000 | 9/16-18 UNF | 2S-6-1040,4S-6-1380 |
| 9/16 F-TYPE MC 1/4 | 30000 | 9/16-18 UNF | 4SH-6-1640 |
| 9/16 F-TYPE MF 1/445000 | 45000 | 9/16-18 UNF | D6S-6-2800 |
| 3/4 F-TYPE MA 5/16 SS | 22000 | 3/4-16 UNF | 2S-8-1040 |
| 3/4 F-TYPE MC/B 5/16 | 22000 | 3/4-16 UNF | 4S-8-1380，4SH-8-1500 |
| 3/4 F-TYPE MF/E 5/16 | 40000 | 3/4-16 UNF | B6S-8-2100，D6S-8-2500，C6S-8-2500 |
| 7/8 F-TYPE MF/E 5/16 | 40000 | 7/8-14 UNF | B6S-8-2100，D6S-8-2500，C6S-8-2500 |
| 3/4 F-TYPE MI/H 5/16 | 46400 | 3/4-16 UNF | E6SH-8-2800,B8S-8-3800 |
| 7/8 F-TYPE MI/H 5/16 | 46400 | 7/8-14 UNF | E6SH-8-2800，B8S-8-3800 |
| 1+1/8 F-TYPE MI/H 5/16 | 46400 | 1+1/8-12 UNF | E6SH-8-2800,B8S-8-3800 |
| 3/4 F-TYPE MB/A 3/8 SS | 22000 | 3/4-16 UNF | 2S-10-690，4S-10-1100 |
| 3/4 F-TYPE MC 3/8 | 22000 | 3/4-16 UNF | 4SH-10-1400 |
| 1 F-TYPE MA 1/2 | 18000 | 1-12 UNF | 2S-12-690 |
| 1 F-TYPE MF/E 1/2 | 30000 | 1-12 UNF | B6S-12-1800，D6S-12-2070 |
| 1 F-TYPE EMG/D/C/B 1/2 | 22000 | 1-12 UNF | 4S-20-760,4SH-12-1300， 4SHH-12-1040,A6S-12-1400 |
| 1 F-TYPE MI/H 1/2 | 43000 | 1-12 UNF | E6SH-12-2500，B8S-12-3010 |
| 1+5/16 F-TYPE ME/G/C/B/A 3/4 | 24000 | 1+5/16-12 UN | 4S-20-760,4SH-20-1040， A6S-20-1200,B6S-20-1400 |
| 1+5/16 F-TYPE MCI | 22000 | 1+5/16-12 UN | 4SH-25-1040 |
| 描述 | WP | 螺纹F | 适用软管 |
| psi | |||
| 3/8M-MP C 1/4 | 22500 | 3/8-24 UNFLH | 4SH-6-1640 |
| 9/16M-MP C/B 5/16 | 22500 | 9/16-18 UNFLH | 4S-8-1380，4SH-8-1500 |
| 3/4M-MP C/B 5/16 | 22500 | 3/4-16 UNFLH | 4S-8-1380，4SH-8-1500 |
| 3/4M-MP F/E 5/16 | 22500 | 3/4-16 UNFLH | B6S-8-2100，D6S-8-2500，C6S-8-2500 |
| 3/4M-MP I/H 5/16 | 22500 | 3/4-16 UNFLH | E6SH-8-2800 |
| 9/16M-MP A 1/2 | 22500 | 9/16-18 UNFLH | 2S-12-690 |
| 9/16M-MP F/E 1/2 | 22500 | 9/16-18 UNFLH | B6S-12-1800，D6S-12-2070 |
| 3/4M-MP F/E 1/2 | 22500 | 3/4-16 UNFLH | B6S-12-1800，D6S-12-2070 |
| 9/16M-MP G/D/C/B 1/2 | 22500 | 9/16-18 UNFLH | 4S-12-1040,4SH-12-1300, 4SHH-12-1040,A6S-12-1400 |
| 3/4M-MP G/D/C/B 1/2 | 22500 | 3/4-16 UNFLH | 4S-12-1040,4SH-12-1300, 4SHH-12-1040,A6S-12-1400 |
| 1M-MP E/G/C/B/A 3/4 | 22500 | 1-14 UNSLH | 4S-20-760,4SH-20-1040， A6S-20-1200,B6S-20-1400 |
| 1M-MP E 1 | 20000 | 1-14 UNSLH | B6S-25-1200 |
| 描述 | WP | 螺纹F | 适用软管 |
| psi | |||
| 24x1.5F-DKOS B/A 5/32" | 30000 | M24x1.5 | 2S-4-1200，4S-4-1040 |
| 24x1.5F-DKOS B/A 5/32" | 30000 | M24x1.5 | 2SH-3-1040 |
| 24x1.5F-DKOS A 3/16" | 30000 | M24x1.5 | 2S-5-1040 |
| 24x1.5F-DKOS A 3/16" | 30000 | M24x1.5 | 2SH-4-1200 |
| 20x1.5F-DKOS C 3/16" | 30000 | M20x1.5 | 4SH-5-1800 |
| 18x1.5F-DKOS B/A 1/4" | 24000 | M18x1.5 | 2S-6-1040，4S-6-1380 |
| 22x1.5F-DKOS B/A 1/4" | 24000 | M20x1.5 | 2S-6-1040，4S-6-1380 |
| 24x1.5F-DKOS B/A 1/4" | 24000 | M22x1.5 | 2S-6-1040，4S-6-1380 |
| 18x1.5F-DKOS C 1/4" | 30000 | M24x1.5 | 4SH-6-1640 |
| 20x1.5F-DKOS A 5/16" | 30000 | M18x1.5 | 2S-8-1040 |
| 24x1.5F-DKOS A 5/16" | 30000 | M20x1.5 | 2S-8-1040 |
| 20x1.5F-DKOS B 5/16B | 40000 | M24x1.5 | 4S-8-1380，4SH-8-1500 |
| 22x1.5F-DKOS C/B 5/16" | 40000 | M20x1.5 | 4S-8-1380，4SH-8-1500 |
| 24x1.5F-DKOS C/B 5/16" | 40000 | M22x1.5 | 4S-8-1380，4SH-8-1500 |
| 24x1.5F-DKOS F/E 5/16" | 40000 | M24x1.5 | B6S-8-2100，D6S-8-2500 |
| 24x1.5F-DKOS I/H 5/16" | 46400 | M24x1.5 | E6SH-8-2800，B8S-8-3800 |
| 22x1.5F-DKOS B/A 3/8" | 28000 | M22x1.5 | 2S-10-690，4S-10-1100 |
| 24x1.5F-DKOS B/A 3/8" | 28000 | M24x1.5 | 2S-10-690，4S-10-1100 |
| 22x1.5F-DKOS E/C 3/8" | 30000 | M22x1.5 | 4SH-10-1400，B6S-10-2070 |
| 24x1.5F-DKOS E/C 3/8" | 30000 | M24x1.5 | 4SH-10-1400，B6S-10-2070 |
| 22x1.5F-DKOS A 1/2" | 18000 | M22x1.5 | 2S-12-690 |
| 24x1.5F-DKOS A 1/2" | 18000 | M24x1.5 | 2S-12-690 |
| 22x1.5F-DKOS G/D/C/B 1/2" | 22000 | M22x1.5 | 4S-12-1040,4SH-12-1300,4SHH-12-1040,A6S-12-1400 |
| 24x1.5F-DKOS G/D/C/B 1/2" | 22000 | M24x1.5 | 4S-12-1040,4SH-12-1300,4SHH-12-1040,A6S-12-1400 |
| 24x1.5F-DKOS F/E 1/2" | 30000 | M24x1.5 | B6S-12-1800，D6S-12-2070 |
| 24x1.5F-DKOS I/H 1/2" | 43000 | M24x1.5 | E6SH-12-2500，B8S-12-3010 |
| 36x2F-DKOS E/G/C/B/A 3/4" | 24000 | M36x2 | 4S-20-760,4SH-20-1040,A6S-20-1200,B6S-20-1400 |
| 42x2F-DKOS E/C 1" | 22000 | M42x2 | 4SH-25-1040，B6S-25-1200 |
| 描述 | WP | 螺纹F | 适用软管 |
| psi | |||
| 1/16M-NPTA 1/8NOHEX | 22000 | 1/16-27 NPTF | 2S-3-1040 |
| 1/4M-NPTB/A 1/4NOHEX | 22000 | 1/4-18 NPTF | 2S-6-1040，4S-6-1380 |
| 描述 | WP | 螺纹F | 适用软管 |
| psi | |||
| 1/16 M-NPT B/A 5/32 | 22000 | 1/16-27 NPTF | 2S-4-1200，4S-4-1040 |
| 1/8 M-NPT B/A 5/32 | 22000 | 1/8-27 NPTF | 2S-4-1200.4S-4-1040 |
| 1/4 M-NPT B/A 5/32 | 22000 | 1/4-18 NPTF | 2S-4-1200，4S-4-1040 |
| 1/8 M-NPTC 5/32 | 22000 | 1/8-27 NPTF | 4SH-4-2200 |
| 1/8 M-NPT A 3/16 | 22000 | 1/8-27 NPTF | 2S-5-1040 |
| 1/4 M-NPT A 3/16 | 22000 | 1/4-18 NPTF | 2S-5-1040 |
| 1/4 M-NPT C 3/16 | 22000 | 1/4-18 NPTF | 4SH-5-1800 |
| 1/8 M-NPT B/A 1/4 | 22000 | 1/8-27 NPTF | 2S-6-1040，4S-6-1380 |
| 1/4 M-NPT B/A 1/4 | 22000 | 1/4-18 NPTF | 2S-6-1040，4S-6-1380 |
| 3/8 M-NPT B/A 1/4 | 22000 | 3/8-18 NPTF | 2S-6-1040，4S-6-1380 |
| 1/4 M-NPTC 1/4 | 22000 | 1/4-18 NPTF | 4SH-6-1640 |
| 1/4 M-NPT A 5/16 | 22000 | 1/4-18 NPTF | 2S-8-1040 |
| 3/8 M-NPT A 5/16 | 22000 | 3/8-18 NPTF | 2S-8-1040 |
| 1/4 M-NPT C/B 5/16 | 22000 | 1/4-18 NPTF | 4S-8-1380，4SH-8-1500 |
| 3/8 M-NPT C/B 5/16 | 22000 | 3/8-18 NPTF | 4S-8-1380，4SH-8-1500 |
| 3/8 M-NPT B/A 3/8 | 22000 | 3/8-18 NPTF | 2S-10-690，4S-10-1100 |
| 1/2 M-NPT B/A 3/8 | 22000 | 1/2-14 NPTF | 2S-10-690，4S-10-1100 |
| 1/2 M-NPT A 1/2 | 18000 | 1/2-14 NPTF | 2S-12-690 |
| 1/2 M-NPT G/D/C/B 1/2 | 22000 | 1/2-14 NPTF | 45-12-1040,4SH-12-1300,4SHH-12-1040,A6S-12-1400 |
| 3/4 M-NPT G/C/B 3/4 | 15000 | 3/4-14 NPT | 4S-20-760，24SH-20-1040，A6S-20-1200 |
| 1 M-NPT G/C/B 3/4 | 15000 | 1-11.5 NPTF | 4S-20-760，24SH-20-1040，A6S-20-1200 |
| 1 M-NPT C 1 | 15000 | 1-11.5 NPTF | 4SH-25-1040 |
| 描述 | WP | 螺纹F | 适用软管 |
| Psi | |||
| I/16"M-NPTAI/8"I | 22000 | I/16"-27NPTF | 2S-3-1040 |
| 1/16°M-NPTA5/32"IP | 22000 | I/16"-27NPTF | 2S-4-1200 |
| 1/16”M-NPTA5/32" I | 22000 | I/16"-27NPTF | 2SH-3-1040 |
| 1/8"M-NPTA3/16"IP | 22000 | 1/8"-27NPTF | 2S-4-1200 |
| 1/8"M-NPTA3/16"IP | 22000 | 1/8"-27NPTF | 2SH-3-1040 |
| 1/8"M-NPTA3/16"IP | 22000 | 1/8"-27NPTF | 2S-5-1040 |
| 1/8"M-NPTJ3/161P | 22000 | 1/8"-27NPTF | 2SH-4-1200 |
| 1/4"M-NPTA1/4"IP | 22000 | I/4"-18NPTF | 2S-6-1040 |
| 5/16"M-NPTA1/4"IP | 22000 | I/4"-18NPTF | 2S-8-1040 |
| 描述 | WP | 螺纹F | 适用软管 |
| psi | |||
| 6X1 M-NPT A 1/8’ IP | 20000 | M6X1 | 2S-3-1040 |

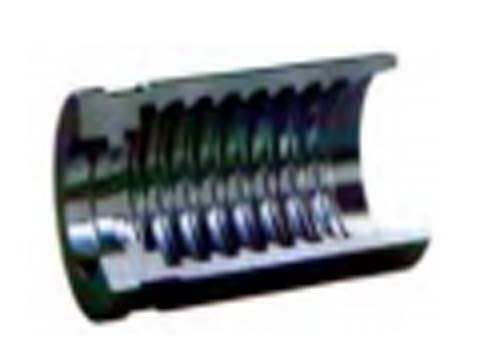

专用套筒
LT799A 6S
| 描述 | 软管规格 | C | D | L | |
| DN | inches | mm | mm | mm | |
| 1/2 LT799A 6S | 12 | 1/2 | 33.7 | 25.0 | 62.0 |
| 3/4 LT799A 6S | 20 | 3/4 | 45.0 | 34.0 | 71.5 |
应用于化学品压注、海底液压元件控制、海底井控等，可供超长管线。
应用于压力达4000bar(58o00psi)的使用环境,如超高压水刀射流破拆(钢筋混凝土拆除等)、管线切割、纸张或钢铁切割以及需要超高压的工业清洗,如贮罐和容器清洗、表面处理、建筑物表面清洗、除漆等。
应用于陆地及海上螺栓预紧系统及液压扭矩扳手等。
应用于阀、工具、控制面板、维修设备等的控制。
应用于小口径换热器管的清洗等。
利通科技超高压树脂软管采用国际通用的颜色标识对压力等级做出区分,便于用户辨识,降低安全风险。
10,000psi-690bar
15,000psi-1034bar
20,000psi-1379bar
30,000psi-2068bar
40,000psi-2758bar
55,000psi-3792bar
软管尺寸：包括软管内径、外径、长度等;
工作压力：由产品的使用工况所决定的最大工作压力、脉冲、以及要求的安全系数等;
使用温度：包括介质最高/最低使用温度及环境最高/最低温度等;
使用介质：介质的物理及化学性能等将对软管材质的选择产生决定性的影响;
应用环境的特殊要求：某些特定的使用环境会对产品的耐磨度、耐老化性能、耐曲挠性能、耐脉冲性能、弯曲半径等提出特殊要求(请咨询我们的业务人员提供最佳解决方案;
连接件选型：选择合适的连接件是生产合格总成产品的前提,根据设备的设计需求对连接件进行有效选择(或设计)将极大的提高总成产品的生产效率。
